Introduction: The Small Component with a Big Risk
In a solar farm, the Photovoltaic (PV) Connector is the critical link between panels and inverters. While small, it carries high voltage and current in harsh outdoor environments.
If a connector fails due to a cracked insulator, a damaged O-ring, or oxidation on the pins, it creates electrical resistance. This resistance leads to overheating and arcing, which are leading causes of safety incidents and fire hazards in PV systems.
For manufacturers, ensuring 100% quality is not just about brand reputation; it’s a massive safety liability. The challenge is that these connectors have complex geometries (cylindrical bodies, internal pins, rubber seals) that are difficult to inspect thoroughly at speed.
The Challenge: Pins, Rings, and Insulators
The project goal was to implement an inline AI vision cell that could inspect both the pin face and the cylindrical surface simultaneously.
The Complexity of Defects:
The system needed to accurately classify a wide array of defects across four critical sub-components:
- Lead Pins: Detect oxidation, exposed copper, pitting, or foreign debris that compromises electrical conductivity.
- O-Ring: Identify surface damage, blackening, or contamination that could break the waterproof seal.
- Insulator Body: Flag structural failures such as cracks, charring, whitening, or material shrinkage.
- Snap-fits & Caps: Inspect for broken buckles (snap-fits) and missing adhesive to ensure mechanical retention.

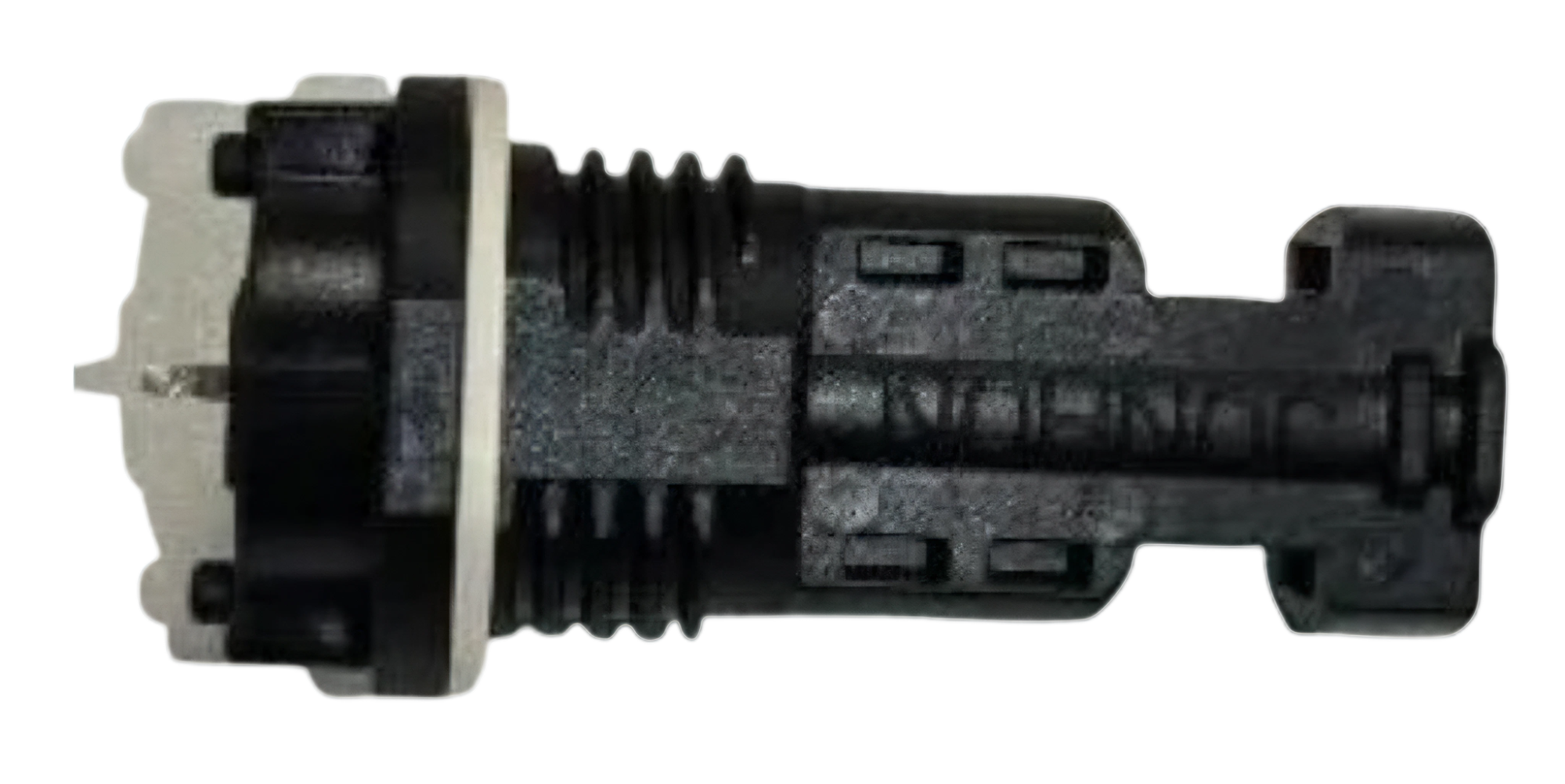

PV connectors require a holistic inspection of the pin, seal, and housing to prevent arcing and fires.
The Solution: One Scan, Total Control
UnitX deployed a multi-camera inspection cell designed to capture the entire connector in a single pass.

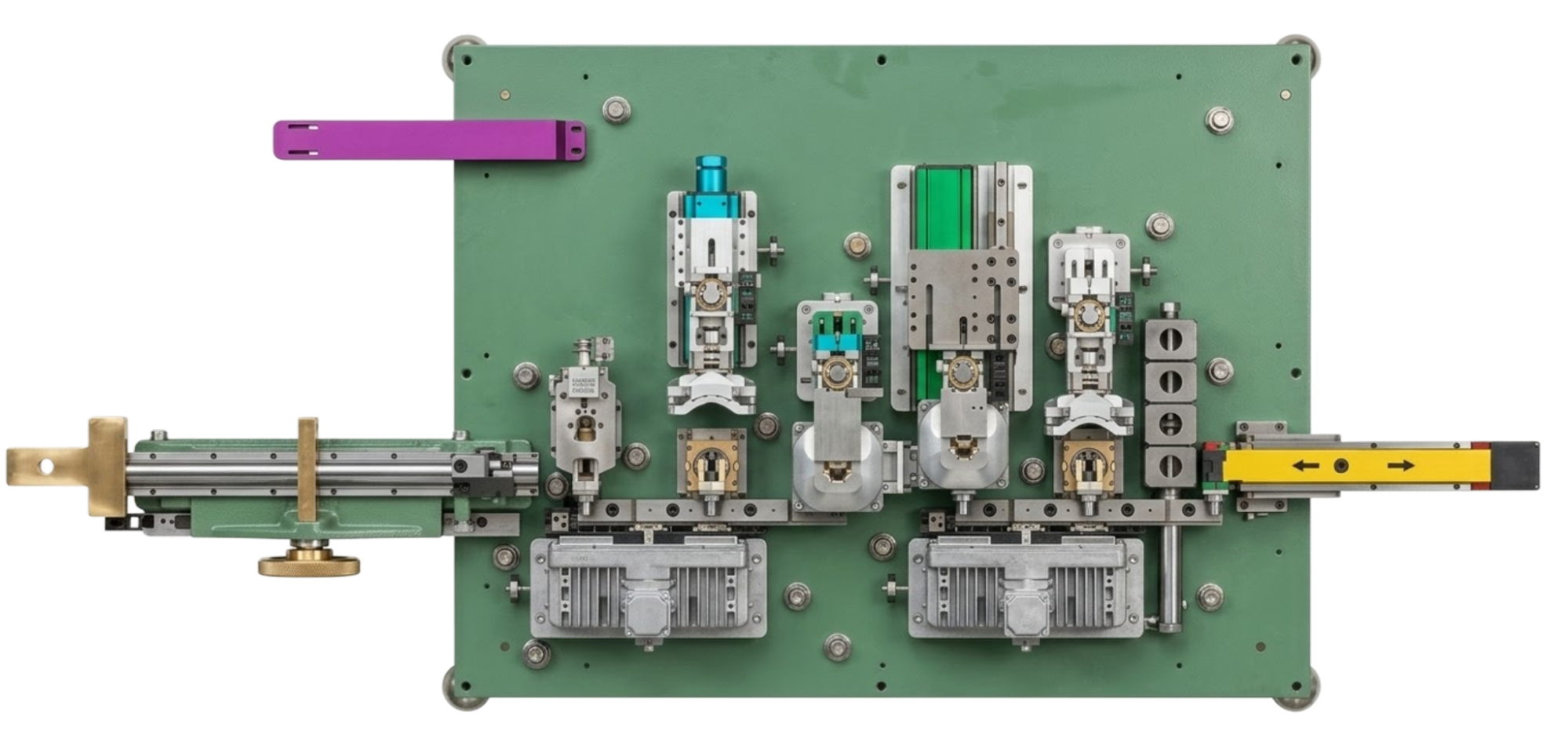

The UnitX inspection cell utilizes 4 OptiX to inspect the cylindrical surface and pin face in one scan.
System Features:
- 360° + Face Imaging: Powered by 4x UnitX OptiX, the system inspects the front pin face and the cylindrical body in one scan.
- Active Quality Management: The system acts as a real-time process monitor. It doesn’t just reject bad parts; it monitors the process health. It triggers an alarm and halts production if:
- Consecutive defects > 3 pieces.
- Overall Yield drops < 95%.
- This allows operators to fix the upstream assembly issue immediately, rather than just sorting out scrap.
- Automatic Segregation: TDefective products are automatically sorted out of the line. If defects exceed the set threshold, the system physically locks the reject bin and halts production to prevent any risk of bad parts proceeding to the next process.
Results: Safety Guaranteed
The automated AI system provided the rigor required for high-voltage solar components.
- Absolute Defect Containment: A 0% False Acceptance Rate guarantees that dangerous flaws, such as cracked insulators or damaged O-rings, never reach the field.
- Rapid Cycle Time: The entire multi-surface inspection process operates with a cycle time of ≤ 3 s per unit (excluding material handling), easily matching high-volume manufacturing demands.
- Optimized Production Yield: A ≤ 3% False Rejection Rate proves the AI’s precision in ignoring acceptable surface variations, preventing unnecessary rework and material waste.
Defect Visualization

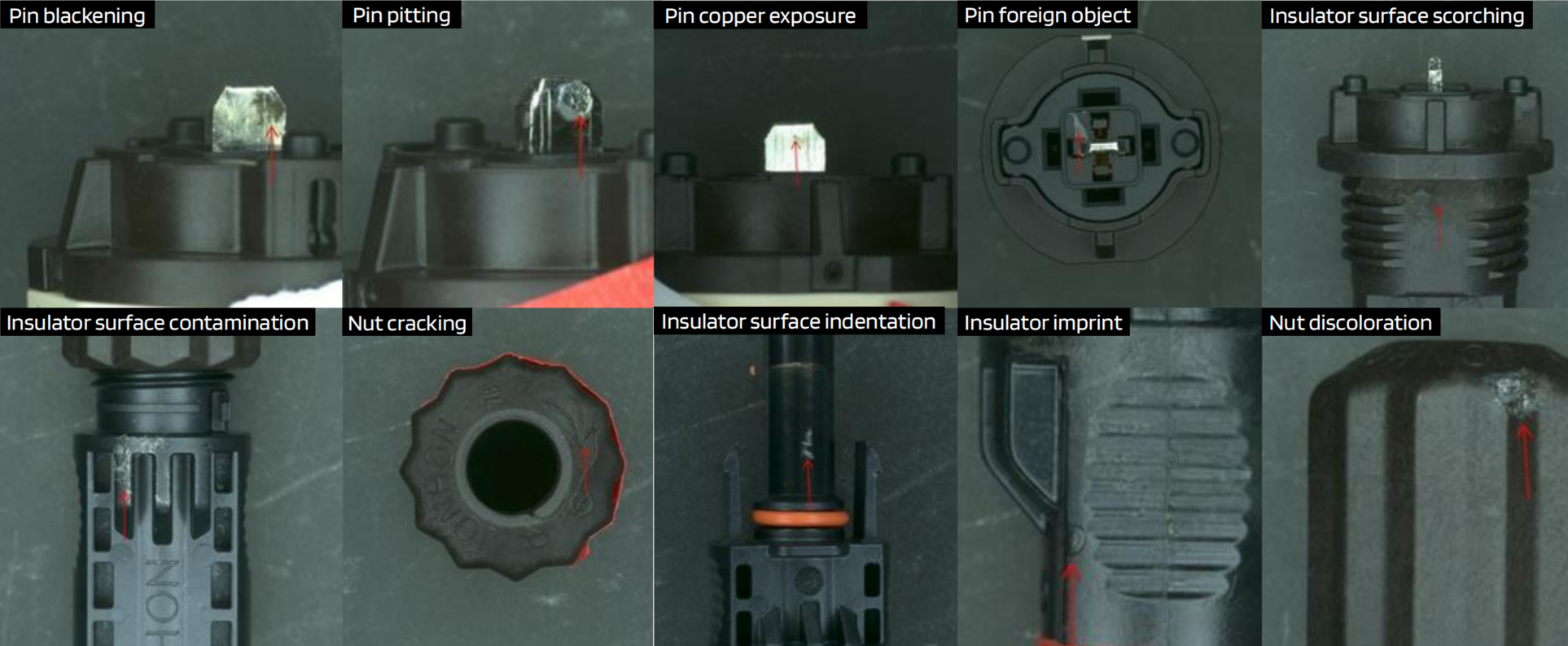

The images below demonstrate the AI’s ability to see deep inside the connector.
- “Pin Copper Exposure”: Highly dangerous, as it leads to corrosion and arcing.
- “Insulator Scorching”: Indicating prior heat damage or molding issues.
- “Pin Pitting”: A subtle defect that increases resistance.
Conclusion
Solar energy is the future, but it must be a safe future. UnitX’s PV Connector Inspection solution provides the standardized, high-precision quality control necessary to prevent field failures. By catching everything from torn O-rings to pitted pins, we ensure that the only thing generating heat in your solar farm is the sun.
