Introduction: The Tactile Touchpoint
In consumer electronics, the keyboard is the primary touchpoint. Users interact with it thousands of times a day. Consistent texture, clear fonts, and uniform color aren’t just cosmetic details—they define the premium feel of a device.
A single scratch, a “black spot” on the finish, or a piece of lint trapped in the coating immediately signals low quality to the consumer. For manufacturers producing millions of keycaps, manual inspection is tedious and inconsistent. Human eyes fatigue quickly, meaning subtle flaws like front-surface particles or character contamination are easily missed.
To protect their brand reputation, our client needed a fully automated solution to inspect their keycap lines, ensuring every keystroke looks as flawless as it feels.
The Challenge: Contrast and Contamination
The primary project goal was to fully automate the surface defect inspection of keyboard keycaps. The system had to identify microscopic flaws that ruin the premium finish of the device, maintaining a strict detection accuracy of 0.1mm.
The AI vision system needed to reliably classify a complex library of defects:
- Particulate Flaws: Front-surface particles, edge particles, double particles, and character particles (flaws interfering with the printed font).
- Foreign Material: Lint, surface contamination, and microscopic black spots.
- Surface Damage: Scratches on the keycap coating.
The ultimate challenge was executing this highly detailed, 0.1mm-level inspection within a rapid 6-second cycle time per keycap, ensuring the automated quality gate could keep pace with high-volume production demands.

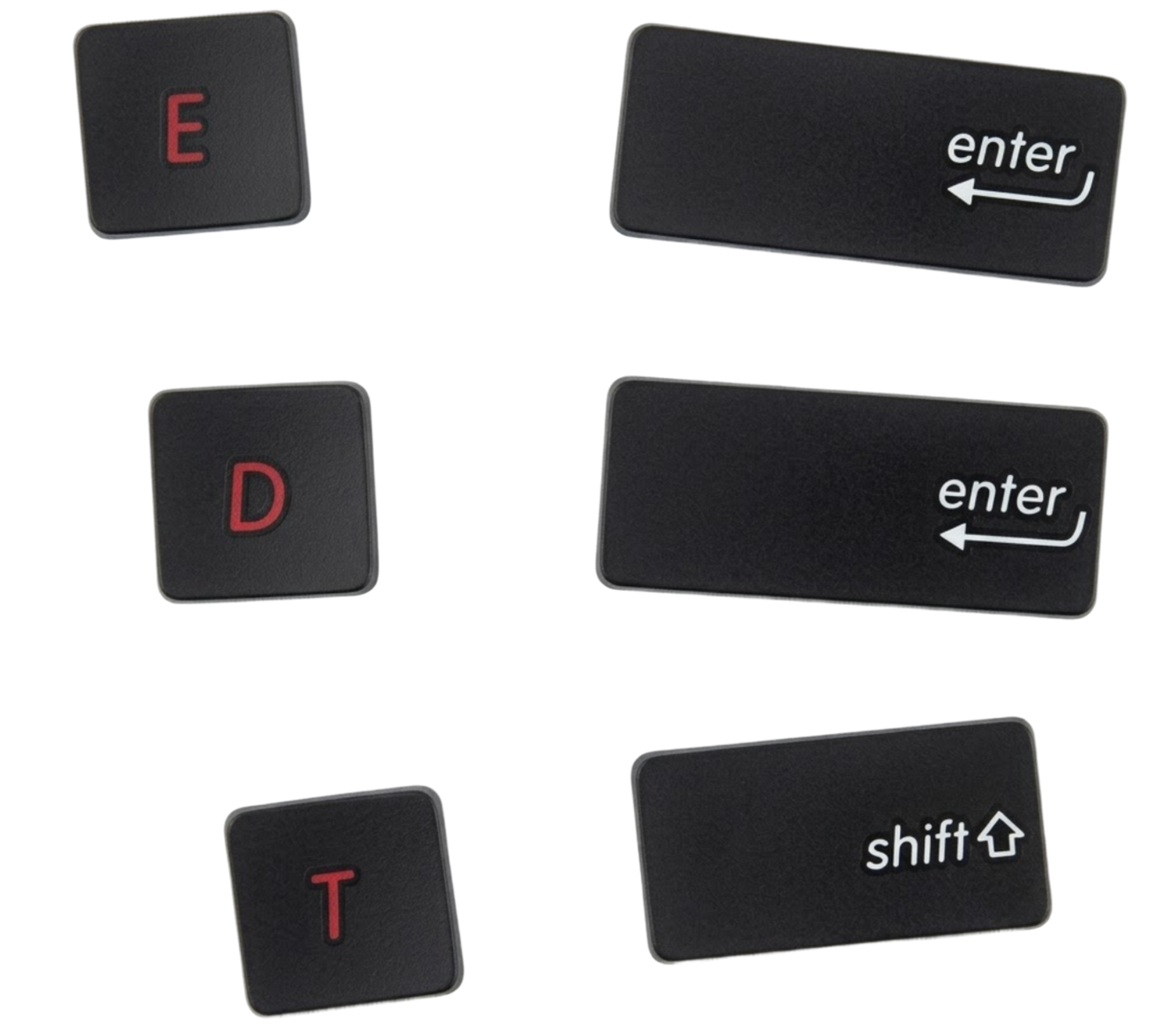

Keycaps require inspection for tiny particles and lint that disrupt the clean aesthetic.
The Solution: Inline Dual-Station Line
UnitX designed an Inline AI Inspection Line featuring two vision stations to handle the color variations.

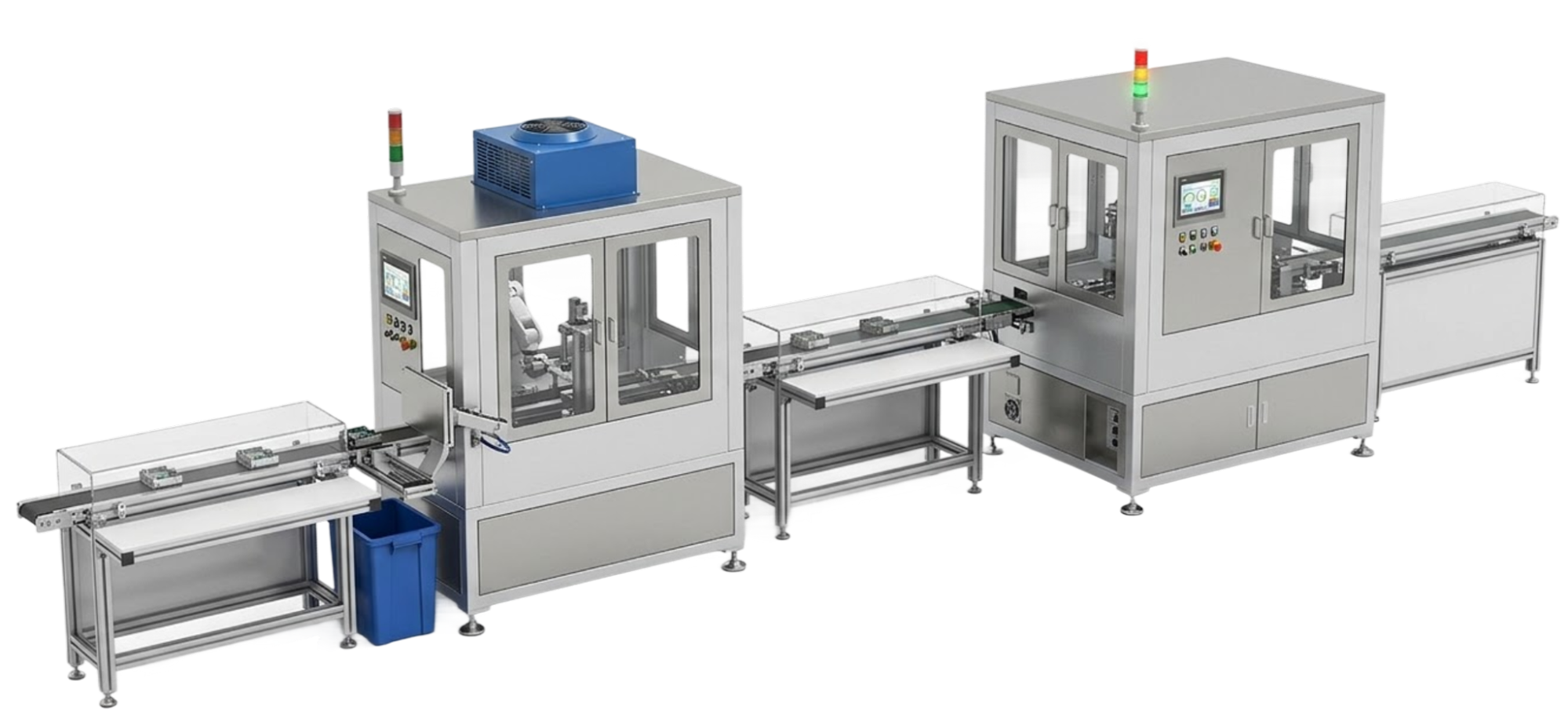

The UnitX inspection line automatically verifies keycap quality and sorts OK/NG parts.
System Features:
- Dual Vision Stations: Using 2x UnitX OptiX systems, the line verifies the two-color combinations and adapts imaging for the specific contrast needs of each key type.
- Automated Sorting: The system automatically segregates OK and NG parts, removing defective trays from the workflow.
- High Precision Detection: The system achieves a detection accuracy of 0.1mm, spotting even microscopic dust specs.
Results: Flawless Quality, Zero Bottlenecks
The deployment transformed the client’s keycap inspection from a slow, inconsistent manual task into a high-performance automated powerhouse.
- Protecting the Premium Feel: A False Acceptance Rate of ≤ 1% (by tray) ensures that visually disruptive defects never compromise the consumer’s tactile experience.
- Optimizing Manufacturing Costs: With an False Rejection Rate of ≤ 1% (by pieces), the AI prevents the costly over-rejection of good parts—a common issue when human inspectors experience eye fatigue.
- Maintaining Production Speed: The system processes and sorts the keycaps in ≤ 6 seconds, maximizing factory throughput without sacrificing an ounce of quality.
Defect Visualization
The AI excels at contrast detection.
- Black Spots: Easily visible on white keys.
- Particles: Visible as tiny irregularities on the smooth key surface.

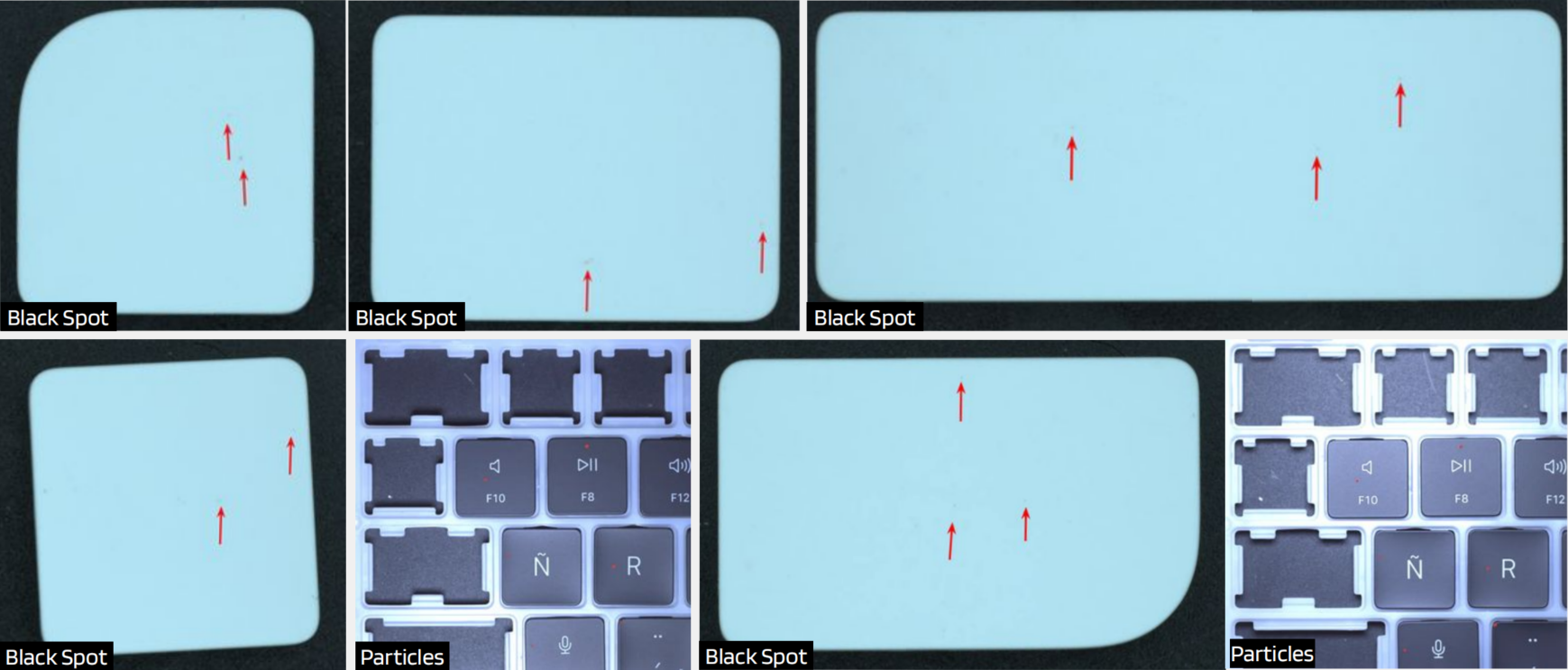

UnitX AI identifies microscopic black spots and particles on both black and white keycap surfaces.
Conclusion
For high-volume consumer electronics, aesthetic perfection is the standard. UnitX’s Keycap Inspection solution automates the tedious search for dust and scratches, helping brands deliver a flawless unboxing experience. Whether the key is black or white, our AI ensures it’s perfect.
Improve your product’s finish.
Contact UnitX to discuss aesthetic inspection solutions.
