How Preprocessing Improves Machine Vision System Accuracy

Preprocessing plays a crucial role in boosting accuracy for machine vision systems. Image quality directly affects how well these systems perform in real-world environments. Recent research shows that traditional metrics like PSNR and SSIM have only a weak correlation with detection accuracy in machine vision applications.

By using advanced preprocess machine vision system techniques, engineers have improved defect detection accuracy from 93.5% to 97.2% and achieved over 99% barcode verification accuracy. These results highlight the importance of preparing images for analysis and demonstrate how preprocess machine vision system methods help enhance reliability for machine vision system operations across various applications. As machine vision systems become more common, both hardware and software preprocessing approaches remain vital for optimal performance in complex environments.

Key Takeaways

• Preprocessing improves machine vision accuracy by enhancing image quality and reducing noise before analysis.
• Techniques like filtering, contrast adjustment, and morphological operations help highlight important features for better detection.
• Combining hardware and software preprocessing enables faster, real-time inspection and more reliable results.
• Effective preprocessing supports manufacturing by increasing defect detection accuracy and speeding up robotic guidance.
• Balancing preprocessing steps is crucial to avoid losing important details or adding errors during image preparation.

Preprocessing in Machine Vision Systems

Preprocessing stands as a critical phase in the workflow of machine vision systems. These systems follow a structured sequence: image acquisition, preprocessing, feature extraction, and image analysis. Each step builds on the previous one, but preprocessing acts as the bridge between capturing raw data and extracting meaningful information. By applying preprocess machine vision system techniques, engineers ensure that images reach the analysis stage with maximum clarity and reliability.

Image Quality Enhancement

Image quality enhancement forms the foundation for accurate results in machine vision systems. After image acquisition, preprocessing uses image processing filters such as contrast adjustment, brightness correction, and sharpening to improve visual clarity. These enhancements allow algorithms to detect features, measure objects, and classify items with greater precision. For example, contrast adjustment through histogram stretching or equalization makes faint features more visible. Sharpening with frequency domain filters or unsharp masking highlights edges and fine details. These improvements help preprocess machine vision system operations deliver consistent quality in manufacturing, medical imaging, and industrial inspection. Enhanced image clarity leads to fewer false rejects and higher productivity, as seen in cases where automated systems reduced false rejects from thousands to just a few hundred units per week.

Noise and Distortion Correction

Noise and distortion often enter images during acquisition, especially in challenging environments. Preprocessing addresses these issues using specialized image processing filters. Techniques like local noise reduction, Bayesian thresholding, and advanced denoising algorithms remove unwanted artifacts while preserving important details. Studies show that preprocess machine vision system methods can significantly reduce noise and distortion, as measured by metrics such as PSNR and SSIM. These corrections ensure that machine vision systems analyze only relevant information, improving both speed and accuracy. Reliable noise reduction also supports effective operation in low-light or high-variability settings, making preprocessing essential for robust machine vision system performance.

Key Preprocessing Techniques

Modern machine vision systems rely on a range of image processing techniques to prepare data for accurate analysis. These techniques use image processing filters and algorithms to enhance image quality, reduce noise, and extract important features. The following sections describe the main preprocessing steps that improve segmentation, image classification, and object detection.

Filtering and Noise Reduction

Filtering and noise reduction form the backbone of many image processing techniques. Engineers use image processing filters to remove unwanted artifacts and improve the clarity of images before further analysis. Common filters include linear, non-linear, adaptive, wavelet-based, and total variation filters. Non-linear filters, such as the median filter, preserve edges while suppressing noise, making them a preferred choice in many applications. Adaptive filters adjust their behavior based on local image statistics, providing real-time noise reduction in dynamic environments.

1. Machine learning-based noise reduction models, especially those using convolutional neural networks, have shown significant improvements in signal clarity and signal-to-noise ratio. These models generalize well across different signal types and support real-time deployment.
2. Objective metrics like increased SNR and reduced mean squared error demonstrate the effectiveness of advanced filtering techniques.
3. Real-world simulations confirm that these models remain robust under challenging conditions.

Filtering and noise reduction not only improve image quality but also support accurate segmentation and image classification. These image processing filters help ensure that only relevant information reaches the next stage of analysis.

Contrast and Brightness Adjustment

Contrast and brightness adjustment are essential image processing techniques that enhance the visibility of features in images. By adjusting these parameters, engineers can make faint or hidden details more prominent, which is critical for segmentation and detection tasks. Image processing filters like histogram equalization and adaptive contrast enhancement help balance brightness and contrast across the image.

Performance data from non-destructive testing inspections show that higher brightness contrast ratios, such as 9:1 in visible light and up to 200:1 in fluorescent testing, greatly improve the likelihood of detecting fine features. Technologies like BAI-MAC™ selectively enhance brightness in darker areas while preserving contrast in brighter regions, making distant or dark features easier to see. Optimizing dynamic range and minimizing flare light are also important for improving feature visibility.

Contrast and brightness adjustment play a key role in image segmentation and image classification, ensuring that important features stand out for further analysis.

Morphological Operations

Morphological operations are powerful image processing techniques that modify the structure of features within an image. These operations use structuring elements to process pixel neighborhoods, enabling noise removal, feature enhancement, and shape preservation. Common morphological operations include erosion, dilation, opening, closing, top-hat transforms, skeletonization, and thinning.

• Opening removes small noise, while closing fills gaps in features.
• Top-hat transforms extract small bright or dark features.
• Skeletonization and thinning reduce objects to their simplest forms, preserving connectivity for better segmentation and analysis.

In pavement monitoring, morphological operations clarify crack edges and reduce noise, improving the definition of critical features. In clinical radiology, these operations help isolate heart structures and separate chambers, enhancing feature extraction for diagnostic purposes. Morphological processing prepares images for accurate segmentation and image classification by refining object structures.

Feature Extraction

Feature extraction is a crucial step in preprocessing that transforms raw image data into meaningful representations for classification and detection. Engineers use a variety of image processing techniques, such as edge detection, texture analysis, and region-based methods, to extract features that describe the shape, texture, or color of objects.

Comparative studies show that Histogram of Oriented Gradients (HOG) and Local Binary Pattern (LBP) methods are effective for classifying small metal objects. Combining HOG and LBP features yields higher accuracy than using either method alone. Support Vector Machine classifiers often outperform others in these tasks. Deep learning methods, such as YOLO and faster R-CNN, achieve even higher accuracy in object detection and image classification but require more computational resources.

A pilot study in medical imaging demonstrated that region of interest (RoI) cropping significantly improves classification accuracy for chronic ocular diseases. CNN models trained on RoI-segmented images outperformed those trained on original images. An ensemble of three preprocessing techniques combined with CNNs improved performance over state-of-the-art methods by 30% in Kappa score and 3% in F1 score. However, some techniques like CLAHE and MIRNET improved visual contrast but did not always boost CNN performance, highlighting the importance of selecting the right preprocessing steps for each application.

Advanced Methods: FPGA-Based and In-Sensor Preprocessing

Recent advances in hardware have enabled real-time preprocessing using FPGA-based and in-sensor solutions. FPGA accelerators implement image processing filters and neural preprocessing modules directly in hardware, delivering high throughput and low latency. For example, FPGA-based digital down-conversion and FFT improve distance measurement resolution in LIDAR, while Retinex-based attention networks on FPGAs enhance low-light images with better brightness and noise reduction.

Neural preprocessing modules embedded in sensors or FPGAs allow systems to perform complex image processing techniques, such as segmentation and feature extraction, at the source. This approach reduces data transfer requirements and accelerates the entire pipeline, supporting real-time image classification and detection in demanding environments.

Tip: Combining multiple preprocessing techniques, such as filtering, morphological operations, and neural preprocessing modules, often yields the best results for segmentation and image classification tasks.

Preprocessing Enhanced Image Compression

Compression for Machine Vision

Preprocessing enhanced image compression plays a vital role in machine vision tasks. Engineers use preprocessing steps to filter noise, highlight important features, and prepare images for efficient compression. These steps help preserve the details that machine vision systems need while reducing the overall data size. For example, applying wavelet transforms or grayscale conversion before compression can keep edges sharp and remove unwanted noise. This approach ensures that compressed images still contain the key information required for accurate analysis.

A neural preprocessing module can also help by focusing on the most useful parts of an image. This method saves about 20% in bitrate without hurting the performance of machine vision tasks. As a result, preprocessing enhanced image compression supports both data reduction and accuracy.

Balancing Quality and Efficiency

Balancing quality and efficiency is essential in preprocessing enhanced image compression. Engineers must keep images small enough for fast processing but detailed enough for reliable machine vision tasks. The choice of compression settings affects both image quality and the ability to detect important features. For instance, higher bitrates keep more detail but use more storage, while lower bitrates save space but may lose critical information.

Preprocessing steps like color space conversion and chroma subsampling increase the correlation between color channels, which helps maintain image quality during strong compression. Metrics such as PSNR and SSIM help measure how well the compressed image matches the original. Studies show that preprocessing enhanced image compression can achieve high PSNR values and strong feature preservation, even at high compression ratios.

Note: Hybrid deep learning architectures, such as those using wavelet transforms and autoencoders, allow region-specific processing. This approach preserves important details and keeps computational costs low, making it ideal for real-time medical imaging and telemedicine.

Preprocessing enhanced image compression improves system efficiency by reducing data size and speeding up analysis. At the same time, it maintains the accuracy needed for critical machine vision tasks.

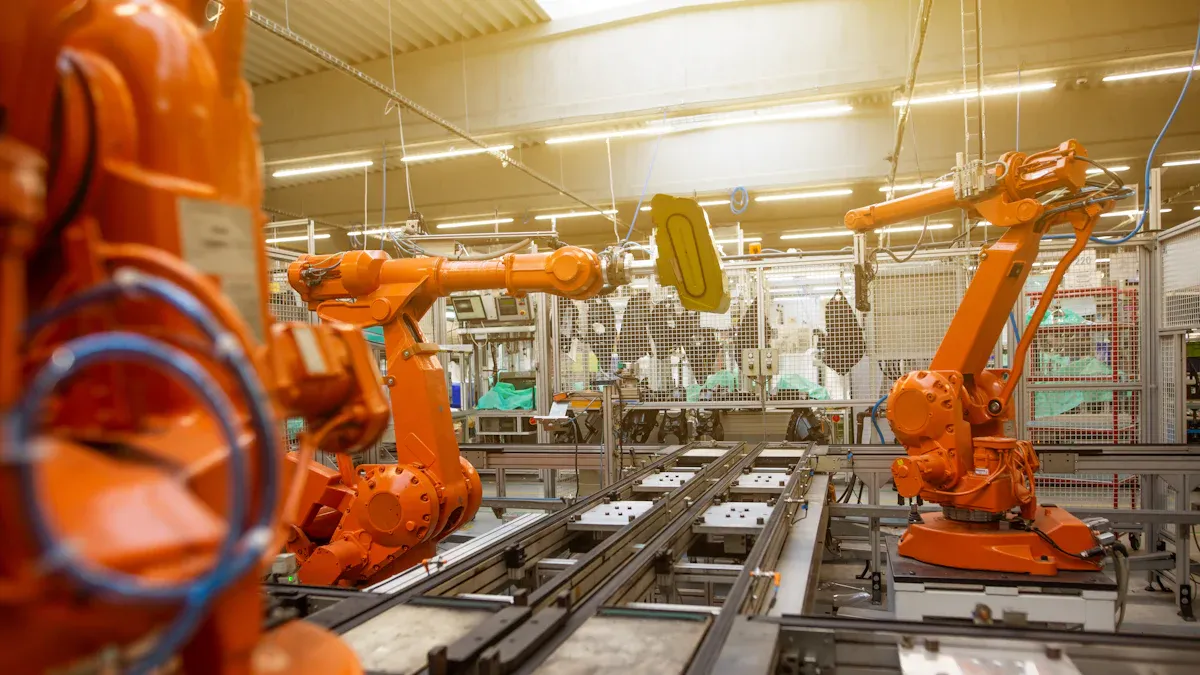

Applications in Manufacturing

Automated Inspection

Manufacturing relies on automated inspection to maintain high standards in quality control. Companies use machine vision applications to analyze every product on the line. Automated inspection systems use advanced image preprocessing to improve clarity and highlight important features. These steps help identify defects and ensure each item meets strict requirements.

• BMW uses AI-driven monitoring in its automotive assembly lines. This approach prevents about 500 minutes of production disruption each year at the Regensburg plant. The system produces one vehicle every 57 seconds and covers 80% of BMW’s main assembly lines across four plants. By analyzing conveyor control data, the company avoids extra sensors and keeps production moving smoothly.
• GE Aerospace monitors over 44,000 engines in real time. Their system combines physical engine models with sensor data. This process reduces unnecessary part replacements and improves inspection accuracy. More than 100 AI experts support these efforts in dedicated monitoring centers.
• Automated inspections increase productivity by 30%. They also reduce downtime by 25% through early detection of issues. Machine vision applications achieve over 99% accuracy in identifying defects such as scratches and cracks.

Image preprocessing techniques, including retinex and wavelet transforms, enhance the performance of object detection models like YOLOv5. These improvements lead to higher precision and recall in assembly process monitoring.

Defect Detection

Quality control in manufacturing depends on accurate defect detection. Preprocessing steps such as data augmentation, rotation, and noise addition help address imbalanced data and improve deep learning models. Studies show that modifying YOLO architectures and using heavy augmentation increase detection accuracy on steel and aluminum surfaces.

A recent study in garment production lines prepared a custom dataset with over 1,500 images. Engineers fine-tuned the YOLOv8 model using preprocessed images and segmentation techniques. The result was a mean average precision of 97.96%. This outcome shows that preprocessing steps significantly improve defect detection accuracy and efficiency in real-time manufacturing environments.

Predictive analytics also play a key role. Tesla monitors battery performance to spot issues before they affect reliability. Intel uses predictive models in semiconductor production to reduce defect rates and improve yield. These strategies support proactive quality control, reduce scrap rates, and lower rework costs.

Robotic Guidance

Robotic guidance in manufacturing benefits from preprocessing sensor data. Robots use machine vision applications for navigation, object detection, and precise movement. Preprocessing reduces noise and improves the clarity of sensor inputs.

These results show that preprocessing cuts sensor return time by 84% and boosts localization success by 70%. Robots can move faster and more accurately, supporting efficient production and reliable quality control.

Manufacturing continues to advance with automated quality control, robust inspections, and real-time object detection. Preprocessing remains essential for high accuracy, operational efficiency, and consistent product quality in modern production environments.

Implementation Challenges

Hardware vs. Software Approaches

Manufacturing environments demand robust machine vision systems for quality control and inspection. Engineers face a choice between hardware and software preprocessing. Hardware solutions, such as FPGA-based accelerators, offer low latency and high throughput. These systems process large volumes of inspection data quickly, which is vital for fast-moving production lines. However, hardware upgrades can be costly and less flexible when adapting to new inspection tasks.

Software approaches provide greater flexibility. Engineers can update algorithms to handle new types of defects or changes in production. Yet, software solutions often struggle with computational load, especially as manufacturing datasets grow from millions to billions of images. Network and storage latency can cause data stalls, slowing down inspection and quality control. Choosing the right database backend, such as ScyllaDB over Cassandra, can improve throughput and reduce bottlenecks in large-scale manufacturing systems.

Tip: Coupling data with metadata in scalable NoSQL databases and using advanced data loaders helps manage latency and computational load in modern production environments.

Real-Time Processing

Real-time processing is essential for manufacturing quality control and inspection. Machine vision systems must analyze images and make decisions in milliseconds to keep production moving. Heavy models, like Mask R-CNN, require significant computational resources, which can increase latency and slow down inspection. Reducing frame rates may improve precision but can miss defects during fast production.

Preprocessing steps, such as noise reduction and feature extraction, improve inspection accuracy but add computational cost. Automation in data annotation and AI-assisted labeling speeds up preprocessing, reduces errors, and improves data quality. The choice of hardware, including GPUs and VPUs, directly affects real-time performance. Energy efficiency and adaptability to changing production conditions remain ongoing challenges for manufacturing systems.

Avoiding Overprocessing

Overprocessing can harm manufacturing inspection and quality control. Applying too many preprocessing steps may remove important features or introduce artifacts, reducing inspection accuracy. Engineers must balance preprocessing to enhance defect detection without sacrificing speed or reliability. Adapting preprocessing pipelines to different production environments is crucial. Automated visual inspection systems must handle noise, data drift, and variability in real time.

Continuous monitoring and validation help maintain data quality. Distributed computing and parallel processing support real-time preprocessing of large datasets in manufacturing. By avoiding overprocessing, engineers ensure that machine vision systems deliver reliable inspection and quality control across diverse production lines.

Preprocessing directly boosts machine vision system accuracy by refining image data and reducing noise. Integrating preprocessing into both hardware and software pipelines enables real-time defect detection and reliable reporting.

• Clean data, transform features, and reduce dimensionality to optimize performance.
• Select techniques like Gaussian filtering or morphological operations based on application needs.
• Validate preprocessing steps to maintain data quality.
  Staying informed about new preprocessing technologies ensures systems remain efficient and accurate.

FAQ

What is preprocessing in machine vision?

Preprocessing prepares images for analysis. It improves clarity, removes noise, and highlights important features. Engineers use it to help machine vision systems make better decisions.

Why does preprocessing matter for accuracy?

Preprocessing increases accuracy by cleaning up images. It removes unwanted artifacts and makes features easier to detect. This step helps systems avoid mistakes during inspection or classification.

Can hardware and software preprocessing work together?

Yes. Hardware preprocessing handles tasks quickly and reduces delays. Software preprocessing offers flexibility for updates. Many systems combine both for the best results.

How does preprocessing help with real-time inspection?

Preprocessing speeds up image analysis. It reduces noise and highlights key features. This allows machine vision systems to inspect products faster and more accurately.

What risks come with too much preprocessing?

Overprocessing can remove important details or add unwanted artifacts. Engineers must balance preprocessing steps to keep images useful for analysis.

Tip: Always test preprocessing steps on sample images before using them in production.
