Selecting the right image file format machine vision system determines processing speed, image quality, and data integrity. Many systems use RAW, RGB, or YUV, each reflecting different needs from the image sensor. RAW captures direct sensor data for the highest quality, while YUV reduces file size for efficient computer vision. Studies show that inconsistencies or lossy compression in image format can harm digital image accuracy and disrupt computer vision applications. Engineers must weigh compression, bit depth, and compatibility when choosing a format for their image file format machine vision system.
Key Takeaways
- Choose image formats based on your system’s needs for quality, speed, and storage.
- Use lossless formats like PNG or TIFF for training and tasks needing perfect image detail.
- Select JPEG for real-time applications where fast processing and smaller files matter.
- Consider bit depth carefully to capture enough detail for your specific imaging task.
- Manage metadata well to improve workflow, organization, and collaboration in projects.
Image File Format Selection Criteria
Choosing the right image file format for a machine vision system depends on several important factors. Engineers must consider compression type, bit depth, metadata support, and processing speed. Each factor affects how well the system captures, stores, and processes images for computer vision applications.
Compression: Lossless vs. Lossy
Compression determines how much an image file shrinks in size and how much detail it keeps. Lossless compression, such as PNG or raw image file formats, preserves every detail. This makes it ideal for tasks that need perfect image quality, like scientific imaging or high-precision vision systems. Lossy compression, like JPEG, reduces file size much more but can lose important details. The table below compares these two types:
| Aspect | Lossless Compression | Lossy Compression |
|---|---|---|
| Image Fidelity | Preserves original image quality perfectly; allows exact reconstruction; no loss of data or detail. Ideal for tasks requiring high accuracy and detail (e.g., machine vision). | Permanently loses some image data; may introduce artifacts or blurriness; quality degrades with repeated edits. |
| File Size Reduction | Modest reduction, typically around 10-40%; results in larger files compared to lossy compression. | Significant reduction, up to 90%; greatly reduces storage and bandwidth needs. |
| Use Case Suitability | Preferred for machine vision and professional applications where every detail matters. | Suitable for applications prioritizing storage efficiency and faster data transfer over perfect fidelity. |
| Editing Impact | Quality remains unchanged after multiple edits. | Quality degrades with multiple edits due to data loss. |
| Examples | PNG, RAW formats | JPEG format |
Bit Depth and Channel Requirements
Bit depth controls how many shades or colors an image can show. For brightfield imaging, a higher bit depth like 16 bit captures a wide range of brightness and detail. This helps when the signal is strong and the system needs high resolution. Fluorescence imaging, which uses weaker signals, often works well with 8 or 12 bit depth. Lower bit depths, such as 8-bit RGB PNG, can speed up image processing and reduce file size while still keeping enough detail for object detection. For depth maps, 16-bit PNG is a common choice because it stores more precise information.
Metadata and Multi-Channel Support
Metadata adds important details to each image, such as subject ID or how the image was captured. Multi-channel support lets the system handle different types of data, like color and depth, in one file. These features help teams organize, search, and share images across projects.
Effective metadata management improves workflow efficiency and makes images easier to find and use. Systems like Flywheel use connectors to pull metadata from devices, classify data types, and support collaborative work. Consistent metadata and multi-channel support form the backbone of scalable machine vision workflows.
Processing Speed and Storage
Processing speed and storage needs depend on the chosen image format. Raw and PNG files keep high quality but use more space and take longer to process. JPEG files save space and load quickly but may lose important details. The right balance depends on the application. For real-time vision tasks, smaller files like JPEG or 8-bit PNG can speed up processing. For training or scientific analysis, raw or lossless PNG files protect data integrity, even if they require more storage.
Major Image File Formats in Machine Vision
Choosing the right image file format shapes the performance of any image file format machine vision system. Each format offers unique benefits and drawbacks for computer vision applications. The following sections explain how JPEG, PNG, TIFF, BMP, and other formats compare in terms of quality, storage, and compatibility.
JPEG: Efficient Storage, Lossy Compression
JPEG, also known as JPG, uses lossy compression to reduce file size. This format is popular for storing and sharing photographic images. JPG files load quickly and save storage space, which helps in real-time computer vision tasks. Most machine vision systems support JPG, making it a practical choice for many projects.
Studies show that JPG lossy compression has little effect on image classification accuracy until compression levels become very high. For most machine vision tasks, JPG balances quality and file size well.
However, JPG does not keep every detail. Lossy compression can introduce artifacts and reduce image quality, especially after multiple edits. This makes JPG less suitable for tasks that need pixel-perfect accuracy or reproducibility.
Key Points:
- JPG offers fast loading and small file sizes.
- Lossy compression may cause some data loss.
- Widely supported in hardware and software.
- Not ideal for storing original data or for tasks needing exact image reproduction.
| Format | Strengths | Weaknesses |
|---|---|---|
| JPG | – Lossy compression balances quality and file size – Widely supported – Ideal for photographic images |
– Compression causes some data loss and artifacts |
PNG: Lossless, Pixel-Accurate Data
PNG, or Portable Network Graphics, uses lossless compression. This means the format keeps every detail of the original image. PNG supports millions of colors and transparency, making it a strong choice for images that need high clarity and precise data.
Machine vision systems often use PNG for tasks that require perfect fidelity. PNG files are larger than JPG files, but they do not lose quality after multiple edits or saves. This makes PNG a favorite for storing training data or images that need further processing.
- PNG preserves all image data, which is important for reproducibility in experiments.
- The format supports transparency, which helps with overlaying images or handling complex scenes.
- PNG is best for images with sharp edges, diagrams, or when every pixel matters.
PNG is preferred in scenarios where image clarity and transparency are essential. Lossless compression ensures perfect fidelity, which aligns with machine vision needs for high-quality input data.
| Format | Strengths | Weaknesses |
|---|---|---|
| PNG | – Lossless compression – Supports transparency – Supports millions of colors |
– Does not support CMYK color profiles – Larger file sizes than JPG |
TIFF and Tag Image File Format: High-Quality, Flexible Storage
TIFF, also known as Tagged Image File Format or Tag Image File Format, stands out for its flexibility and high quality. TIFF supports both lossless and lossy compression, multiple color profiles, and high bit depth. This makes TIFF a top choice for storing high-resolution images in machine vision and scientific imaging.
TIFF files can store multiple layers or pages, which helps in complex computer vision workflows. The format also supports extensive metadata, such as camera settings and timestamps. This feature aids in tracking and analyzing images across projects.
TIFF uses lossless compression methods like LZW and ZIP, which keep all pixel details and maintain high color fidelity. This is critical for applications like medical imaging, geospatial analysis, and digital archiving. However, TIFF files are often large, even after compression. This can slow down processing and require more storage.
TIFF is widely used for high-quality, high-pixel images and supports lossless compression. The format preserves color integrity and detail, making it suitable for tasks where pixel-level precision is essential.
| Format | Strengths | Weaknesses |
|---|---|---|
| TIFF | – Lossless, retains original quality – Supports multiple color profiles (RGB, CMYK, LAB, grayscale) – High color depth (up to 32 bits) – Stores multiple images in one file |
– Large file sizes – Poor web support |
BMP and Other Formats
BMP, or Bitmap, is a simple, uncompressed image format. BMP files keep full quality and detail, making them easy to read and write. However, BMP files are very large because they do not use compression. This limits their use in machine vision systems where speed and storage matter.
BMP does not support transparency or layers. The format is device-dependent, which can cause images to look different on various systems. For better compatibility and performance, many engineers convert BMP files to mainstream formats like PNG or JPG.
Other formats, such as GIF (Graphics Interchange Format) and HEIF, appear less often in machine vision. GIF supports only 256 colors and uses lossless compression, but it is best for simple animations rather than detailed images. HEIF offers high compression and quality but lacks broad support in machine vision libraries.
| Format | Strengths | Weaknesses |
|---|---|---|
| BMP | – Lossless, uncompressed – Simple structure – High quality and detail |
– Large file sizes – No support for layers or transparency – Limited universal support |
For most machine vision systems, PNG, TIFF, and JPG remain the main choices due to their balance of quality, file size, and compatibility. BMP and GIF are less common because of their limitations in color depth, compression, and support.
Practical Trade-Offs in Image File Format Machine Vision System
File Size vs. Image Quality
Engineers often face a choice between smaller files and better image quality. Each format offers different benefits and drawbacks:
- jpg uses lossy compression. This reduces file size a lot. It works well for photographs where some loss of detail is acceptable. However, high compression can cause visible artifacts and lower quality.
- PNG uses lossless compression. It keeps all image details. This format is ideal for tasks that need high precision. The downside is larger file sizes, which can slow down loading and storage.
- TIFF supports lossless compression and high bit-depth images. It gives the best quality for professional use. These files are very large and can slow down processing.
Choosing the right format depends on the needs of the image file format machine vision system. Smaller files help with speed and storage, but may lose important details. Larger files keep more information but require more resources.
Speed vs. Accuracy
Speed and accuracy often pull in different directions. jpg files load and process quickly because of their small size. This helps in real-time vision tasks, such as object detection on edge devices. However, the loss of detail can affect results in tasks that need pixel-perfect accuracy.
PNG and TIFF formats keep all image data. They support high accuracy in image processing. These formats work best for training machine learning models or scientific analysis. The trade-off is slower processing and higher storage needs.
Tip: For fast tasks, use jpg. For tasks needing high accuracy, choose PNG or TIFF.
Compatibility with Software and Hardware
Not every format works with all machine vision tools. jpg, PNG, and TIFF have broad support in most libraries and hardware. This makes them safe choices for many projects. Some formats, like BMP or raw, may not work with every device or software package.
Engineers should check if their chosen format matches the requirements of their vision system. Using a widely supported format avoids problems during image processing and sharing.
Recommendations for Machine Vision Scenarios
Training and Dataset Preparation
Selecting the right image file format for training and dataset preparation can improve both model performance and training speed. High-quality images help deep learning models learn better. Consistent image size and pixel values also matter. Many machine vision systems use lossless formats like png or tiff for training datasets. These formats keep all the original details and avoid compression artifacts.
Researchers often normalize and resize images before training. Normalization puts pixel values in a similar range, which helps the model learn faster. Resizing makes sure all images fit the model’s input size. The original format affects how easy these steps are. For example, tiff and png keep high quality, so the model gets the best data. Some systems convert all images to png before training to ensure consistency.
Tip: Use lossless formats for training datasets. This keeps the data clean and helps the model learn better.
Real-Time Inference and Edge Devices
Real-time inference on edge devices needs fast processing and low storage use. These devices often have limited memory and slower processors. Choosing a smaller image file format helps the system run faster. JPEG is a popular choice for real-time tasks because it uses lossy compression to shrink file size. This speeds up loading and processing.
Some applications use MJPEG for video streams. MJPEG gives low latency and uses less CPU power, but it needs more bandwidth. H.264 compresses better and saves bandwidth, but it can add delay and use more CPU. The best choice depends on the device’s power and the network’s speed.
- MJPEG works well for low-latency needs.
- H.264 fits when saving bandwidth is more important.

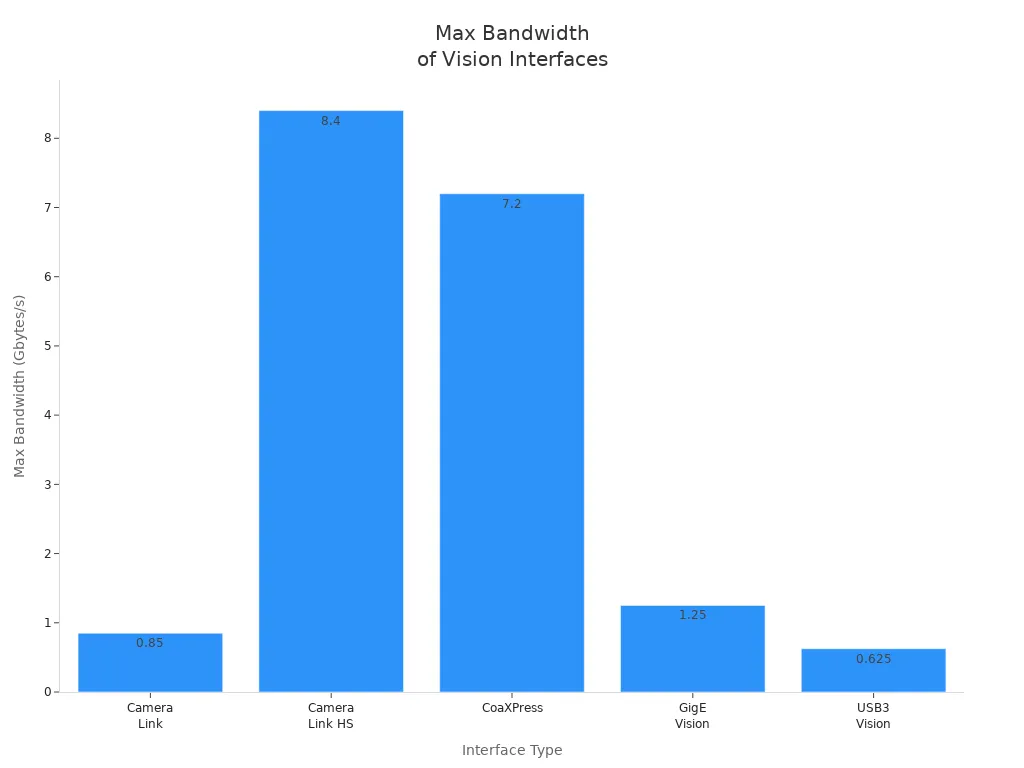

The table below shows the bandwidth needs for different camera interfaces. This helps engineers pick the right format and hardware for real-time vision tasks.
| Interface | Bandwidth Range (approx.) | Cable Length (max) | Notes |
|---|---|---|---|
| Camera Link | Up to 850 Mbytes/s (two cables) | 4 to 15 meters | Point-to-point parallel interface; requires frame grabber; low latency |
| Camera Link HS | 1.2 to 8.4 Gbytes/s (depending on cable type and number of cables) | Up to 100 meters (fiber optic) | Packet-based; supports multiple cables; requires frame grabber; low latency |
| CoaXPress | Up to 7.2 Gbytes/s (6 links) | 25 to 100 meters (depending on speed) | High speed coaxial cable; supports power and control; requires frame grabber |
| GigE Vision | 1 to 10 Gbits/s (1.25 Gbytes/s approx.) | Up to 100m (copper), 5000m (fiber optic) | Ethernet-based; no frame grabber needed; supports multiple streams |
| USB3 Vision | Up to 5 Gbits/s (approx. 625 Mbytes/s) | Typically short (USB cable limits) | USB-based; plug and play; no frame grabber needed |
Storage and Transmission
Distributed machine vision systems often need to store and send large amounts of image data. The choice of file format affects how much space is needed and how fast images move across networks. Medical imaging uses formats like NIfTI and DICOM, which store lots of details but create large files. These big files can slow down storage and transmission, especially over networks with limited bandwidth.
Compression helps reduce file size. Lossless methods, such as Huffman encoding, keep all the details. Lossy methods shrink files more but may lose some information. New techniques, like downsampling and quantization hiding, can make files smaller while keeping important details. Engineers must balance file size and image quality for each use case.
Note: The right format can save storage space and speed up transmission, but always check if the image quality meets the needs of the application.
Selecting the right image file format helps machine vision systems work better. Engineers should match the format to the needs of each application. The table below gives a quick guide:
| Scenario | Recommended Format |
|---|---|
| Training | PNG, TIFF |
| Real-time inference | JPEG |
| Storage/Transmission | JPEG, PNG |
Testing different formats with sample image data ensures the best results for each project.
FAQ
What is the best image file format for machine vision training?
Engineers often choose PNG or TIFF for training. These formats keep all details and avoid compression artifacts. High-quality data helps models learn better.
Can JPEG files work for real-time machine vision?
JPEG files load quickly and use less storage. Many real-time systems use JPEG for fast processing. Some detail may be lost, but speed improves.
Why does bit depth matter in machine vision?
Bit depth controls how much detail an image can show. Higher bit depth means more shades and better accuracy. Tasks like depth mapping need higher bit depth.
How does metadata help in machine vision workflows?
Metadata stores extra information about each image. Teams use metadata to organize, search, and track images. Good metadata makes workflows faster and more reliable.
Are BMP files good for machine vision applications?
BMP files keep full quality but use a lot of storage. Most engineers prefer PNG or JPEG for better balance between quality and file size.
